| Electrical Distribution System with real time data from N30 serial port |

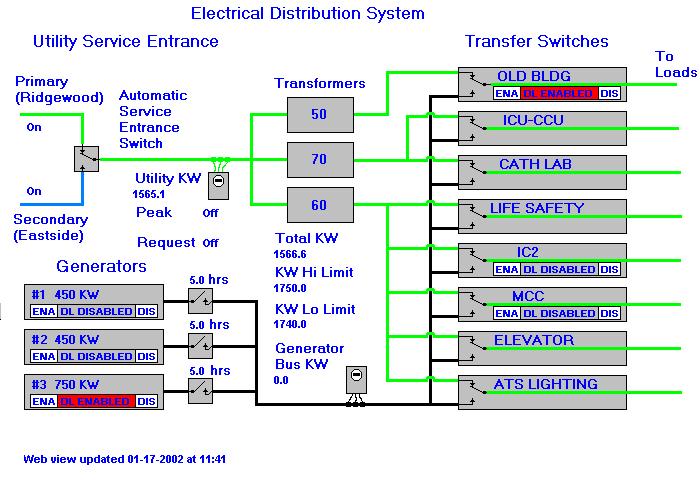

This example of the SWFTEC Graphic Interface System is an HTML page used for monitoring and control of an electrical distrbution system. Transfer switch positions are shown and the lines are color coded for the power source. Note the generator bus is black since the bus is currently dead. When the generators run the bus turns red and the KW reading displays on the graphic. Transfer switches using generator power would have their load lines turn red to show they are on generator power. The picture here was captured from the live interface using the SAVEBMP() function in the SWFSCRIPT language.
Current price of the SWFTEC Graphic Interface System is $100.00 USD including a graph plotting utility.
